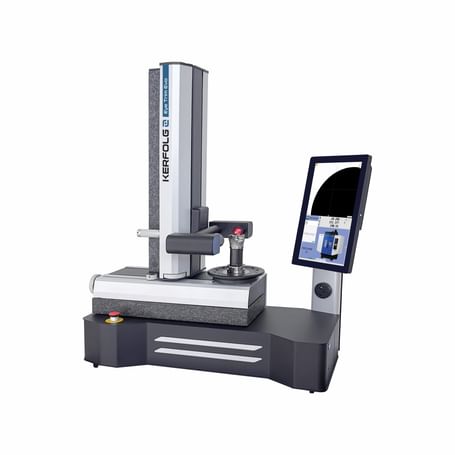

Solid, precise and functional high-performance presetter. High degree of measurement repeatability and reproducibility.
Vertical monitor with 15.6'' touch screen for improved visualisation of both data and measurement functions. Innovative graphic interface with simple and organised layout.
State-of-the-art electronics and scales greatly enhance preset accuracy and performance. Dust and liquid resistant screen for reliable operation even in the harshest environments.
New graphical user interface with simple and organised layout, reducing operation time and complexity. Latest-generation high-resolution cameras to better analyse the tool, both in measurement and inspection. Base and column in natural granite, one of the materials with the lowest coefficient of thermal expansion, able to guarantee thermal and dimensional stability and therefore extreme precision, repeatability and reproducibility of the measurement. Certified optical glass scales.
New-generation, simple and intuitive software that increases the connections between operators, instruments and machines on the shop floor. Different measuring modes (fixed grid, autotargeting and freezing of measurements), cutting edge inspection function, automatic measurement of geometric entities.

Free software update for life. Interchangeable spindle holders do not require adapters, avoiding possible mismatch errors.
CHARACTERISTICS:

- Measuring range: max. diameter 360 mm (radius 180 mm); max. height 460 mm
- Natural granite base and column: max. linearity error 8 microns
- Linear guides (2 per X-axis, 1 per Z-axis) with double recirculating ball bearings.
- Rapid axis movement
- Manual micrometric adjustment
- Overall dimensions: L= 958, H=974 mm; D=441 mm
- Framed area: 7.6x7.2 mm
- Infinite machine origins
- Infinite tool tables
- Infinite tools per table
- Connection and integration functions: 4 USB ports, LAN connection, standard post processor.


OPTIONAL:
- Label printer
