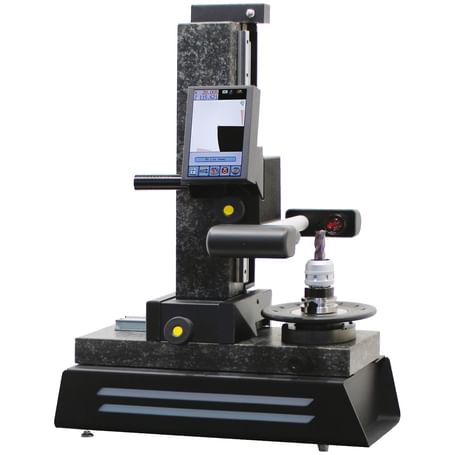

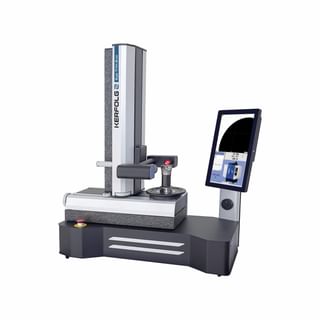

High performance entry level preset. Despite its small size, with a diameter of 260 mm and a height of 360 mm, Eye Trim II contains structural and design features capable of guaranteeing remarkable measurement accuracy, dimensional stability and a high degree of reliability. Base and column in natural granite, one of the materials with the lowest coefficient of thermal expansion (fundamental element in terms of measurement). New 7 '' graphic display makes the presetting experience simple and complete, thanks to an intuitive display of the tool data and the practical summary of all the machine functions in a single screen. Interchangeable spindle holders avoid the use of adapters and consequently possible coupling errors.
FEATURES.
- X axis measurement resolution 0.001 mm. Z axis 0.001 mm.
- Management electronics with 32-bit RISC processor and integrated vision system.
- C-MOS sensor, 5x5mm framed image area, 20X magnification.
- Telecentric lens and LED illuminator.
- 7" LCD color TFT graphic display (image 86x150).
- Full Touch Screen for all presetter functions.
- Software with menus represented by icons.
- Lifetime free software update .
- Display radius / diameter, mm / inch, abs / incr.
- Possibility of measurement with autocollimation on the whole screen.
- Automatic calculation cycle of insert radius and angle.
- Management nr. 9 digital machine origins.
- Management nr. 9 tool tables, each consisting of 99 tools.
- Memorization for each tool offset of: T, Lx, Lz, insert radius.
- Data storage on flash memory.
- Connection with PC via RS-232 port and electronics BIOS update.
- 24Vdc power supply with external power supply supplied as standard.
- TD236 for managing backup and restore functions of machine origins and tool lists.
- Interchangeable spindle holders ISO/BT/HSK/VDI supplied.
.
OPTIONAL.
- Mini-label printe.
- Support table
