Measuring range mm 200 x 100.
Working plane mm 400 x 150.
Rotating screen Ø mm 312.
Inverted image.
Table rotation ±15°.
Line resolution 0.5 μm.
Halogen lighting 24V - 150W.
Accuracy (3.5 +L/50) µm.

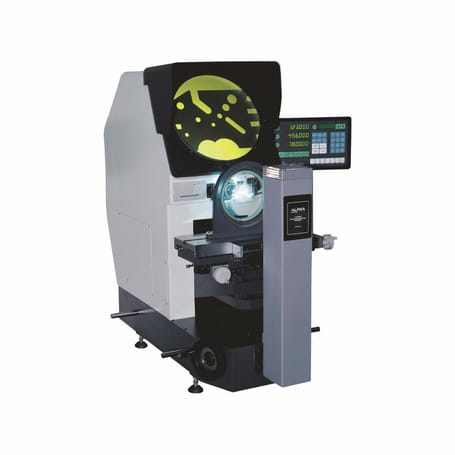

The 300 mm digital horizontal measuring projector is a precise, excellent and effective measuring instrument that integrates optics, mechanics and electricity. It is widely used in the mechanical, electronic and light industry sectors as well as in laboratories, metrology rooms and workshops, research institutes, inspection and measurement departments, etc. This instrument can adequately inspect various types of surfaces and profiles of complicated parts such as jigs, cams, threads and gears, including machine tool cutters and their components.
