Measuring range mm 150 x 50.
Working plane mm 340 x 152.
Screen mm 196 x 96.
Straightened image, inverted.
Manual shift.
Halogen lamp illumination.
Magnification error max. 3.0+L/50.
Accuracy µm 0.5.

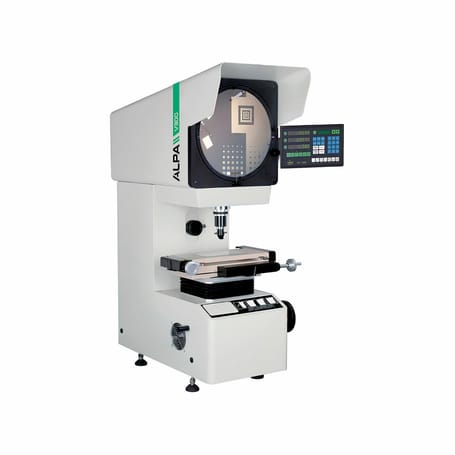

The Alpa Profil V300 vertical profile projector is a precise, versatile and easy-to-use tool. It is equipped with a release mechanism for quick handling, a 3-axis viewer (X, Y, angles) and a geometric processor capable of calculating radii, diameters, angles and centre distances. The images are clear and well defined, allowing accurate measurements even on complex parts.
It is a profile projector that combines good build quality, ease of use and versatility. It is equipped with a finely sandblasted screen that guarantees a sharp, well-contrasted image. It also features a cross-hair reticle, graph stops, diascopic and episcopic illumination.
