- Five in one - Premium motorised test bench, LD length measuring system, interface cable, AFH LD data transmission software, AFH 12 interface converter and mounting
- With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 210 mm, readability 0.01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1.5 m, high data acquisition rate

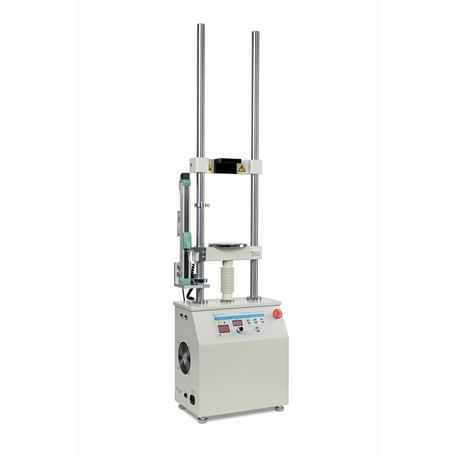

- Motorised test stand for tensile and compressive force measurement
- Stepper motor for optimum user-friendliness
- for constant speed from minimum to maximum load
- enables testing at minimum speed and full load
- for greater positioning accuracy Quick start and stop, without shutdown times, even at high speeds
- travel speed can be set with maximum precision with display visualisation
- Maximum travel guaranteed by electric limit switches
- Large working area with standard-length guide pillars allows for multiple mounting possibilities
- Particularly flexible mounting possibilities for various force transducers, e.g. SAUTER FC, FH, FK, FL:
- Direct mounting of measuring instruments with internal measuring cell with a measuring range of up to 500 N
- Direct mounting in the crossbar of the external measuring cell from a measuring range of 1000 N
- Support for SAUTER FH series dynamometers with external measuring cell (see accessories)
