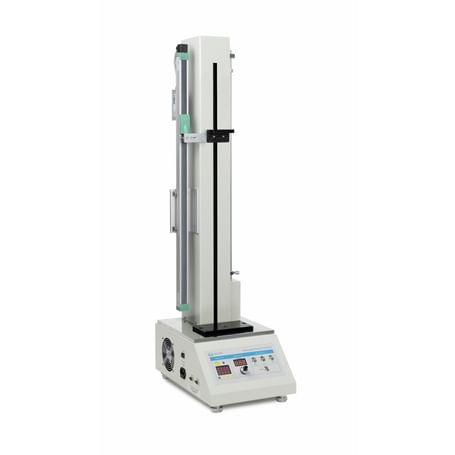

Five in one - motorised test bench, LD length measuring system, interface cable, AFH LD data transmission software, AFH 12 interface converter and mounting.
- With linear potentiometer for length measurement to create force-displacement diagrams on PC, max. measuring range 700 mm, readability 0.01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1.5 m, high data acquisition rate.
- Motorised test stand for tensile and compressive force measurement.
- Stepper motor for optimum user-friendliness.
- for constant speed from minimum to maximum load.
- enables testing at minimum speed and full load.
- for greater positioning accuracy Quick start and stop, without shutdown times, even at high speeds.
- travel speed can be set with maximum precision with display visualisation.
- Automatic or manual travel modes.
- Premium control panel:.
- Digital speed indicator.
- Digital repeat function.
- Test bench control via SAUTER AFH PC software.
- Desktop version for ease of use.
- Robust construction.
- Mounting option with robust construction for SAUTER dynamometers up to 2 kN, only in combination with TVO-A01 (see accessories)
