A2246

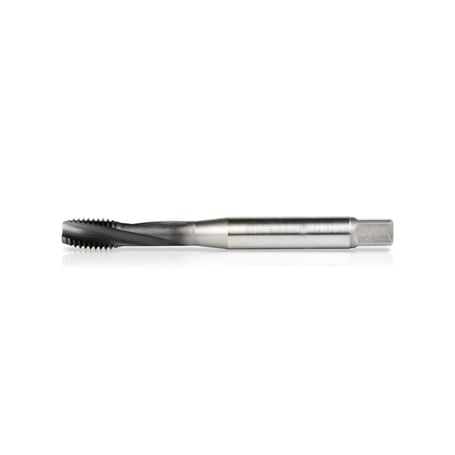

Spiral flute 25° tap titanium KERFOLG Ti-TAP for blind-holes M

More Views

Regular Price: €35.33

Special price: -% €35.33

from €35.33
to €50.99
from €35.33
to €50.99
Incl. 0% Tax

Are you looking for an out of production item, or need a customization?

Details
ISO thread DIN 13 coarse pitch
Tolerance: 6HX
Surface finish: TiCN
Thread depth: ≤ 1.5XD
Type of hole: Blind
Chamfer form: C 2/3
Application: Titanium-base alloys with R ≤ 1400 N/mm²
Recommended cutting data i
CARBON STEEL
< 500 N/mm²
< 850 N/mm²
< 1200 N/mm²
STAINLESS STEEL
< 600 N/mm²
< 850 N/mm²
Duplex
CAST IRON
< 240 HB
< 300 HB
NON FERROUS
< 10% Si
> 10% Si
Brass Copper
Bronze
SUPER ALLOY
Ti6Al4V
HTA
HARDENED
< 45 HRC
< 60 HRC
Specifications
  • Standard DIN 371 Standard DIN 371
  • Ring colour pink Ring colour pink
  • Blind holes Blind holes
  • TiCN TiCN
  • M thread M thread
  • Profile 60° Profile 60°
Product code
A2246
Brand
KERFOLG
