Use with integrated measuring cell.

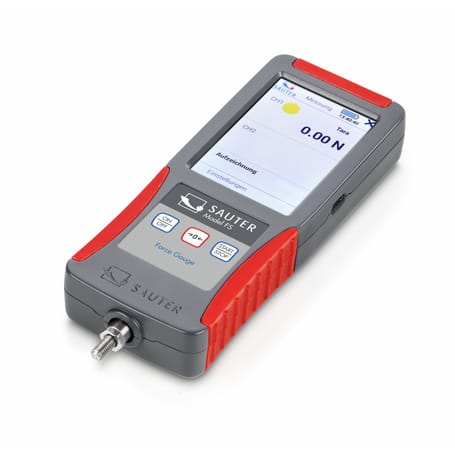

The SAUTER FS premium dynamometer has an integrated measuring cell for tensile and compressive force applications. Whether mobile for quick tests or stationary integrated in a test bench or production line, the multifunctional display allows all recorded values to be read off in real time. Via the integrated interface, the data can be sent to a PC or laptop for further processing.
- Use with external measuring cells.
SAUTER Premium Dynamometer FS is compatible with all SAUTER strain gauge measuring cells, see Measuring Cells. Up to 4 external measuring cells can be connected simultaneously. When using an external measuring channel, the internal measuring cell is deactivated as long as an external measuring cell is connected.
- Measurement of forces in different directions of tension or compression possible with only one measuring device.
- 3.5" touch screen with touch pen.
- Standard version with 2 measuring channels for external force sensors (can later be expanded from 2 to 4).
- An internal measuring cell is possible (is deactivated when connecting an external measuring cell).
- Suitable for 4- and 6-wire sensors with strain gauges.
- Two-point adjustment with weights or numerical adjustment possible.
- External sensor-specific data are stored directly in the connector.
- USB interface for data transfer and power supply as standard.
- Internal device memory (16 GB).
- Adjustable SI units: kg, N, kN, mN, Nm, kNm, mNm.
- Tolerance function.
- Track function for continuous measurement display.
- Peak value measurement.
- Can be combined with all SAUTER test benches.
- Supplied in a high-quality, robust system case (systainer® T-LOC) with mains power supply and USB cable type C.
- Tip: Order the practical system case (systainer® T-LOC) for storing and transporting accessories, clamps, sensors, etc. at the same time, SAUTER FS TKZ, see accessories
