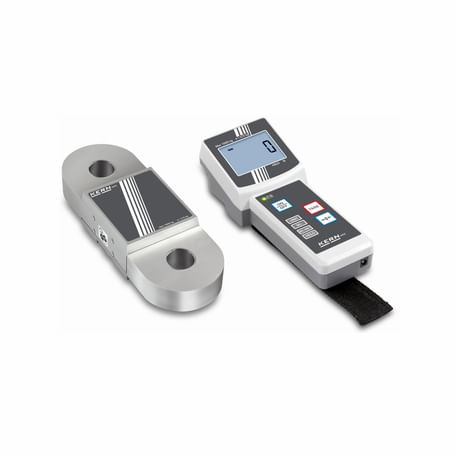

Compact crane scale for use in harsh environments or where space is limited, with a convenient hand-held terminal.
.
With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety).
With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
Its compact design also makes ideally suited for installation in systems where space is limited etc. Peak load display (peak hold).
Hold function: when the weight has stabilized, the weight indicated on the display is automatically "frozen" until the HOLD key is pressed.
Tare: Resets the display to zero when there is a load on the scale. Loads that are removed or added are then displayed directly. Display device with integrated radio module, with convenient hand strap, which the user can take with him. This allows the user to read off the weighing data, even when he/she is a long way from the load detector (force gauge) or in poor lighting conditions. Included. Range up to 100 m. All functions can be selected. LCD display, digit height 23 mm, standard internal rechargeable battery pack. Operating time up to 80 h without backlight, charging time approx. 12 h.
.
Housing dimensions (display device) W×D×H 88×64×256 mm.
.
Material and design of housing/load support, models with [Max] ≤ 3 t: aluminium/stainless steel bearing [Max] > 3 t: steel/steel
