Description

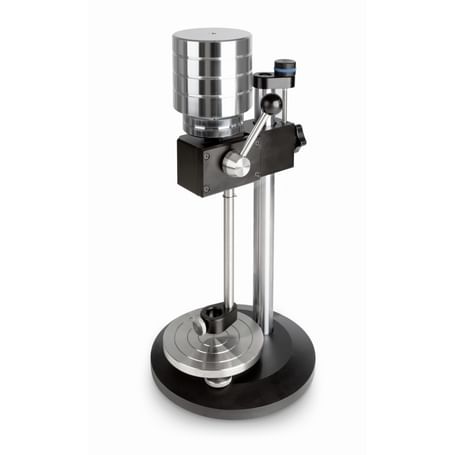

- High-quality test bench for Shore hardness testing of plastics for industry and the laboratory
- One test bench for two hardness scales: Only one additional TI-HE weight needs to be screwed onto the TI-HEA test bench to make it suitable for Shore D hardness testing, see accessories
- Steel plate, levelable for precise measurements
- Level adjustment: For precise levelling of the steel base plate, e.g. for inhomogeneous test objects
- Mechanical design: Compact design allows for easy handling
- With this test bench, the accuracy of the measurement result is higher than with a manual measurement
- Easy operation enables repeatable measurement results:
Operation:
1. The SAUTER HED hardness testing instrument is positioned suspended
2. The test bench can be swivelled using the 2 screw mechanisms underneath the Shore hardness testing instrument
3. The test object is placed on the round test table directly below the measuring terminal of the hardness testing instrument
4. Pressing the lever releases the calibration weight, which with its own weight compresses the measuring terminal directly into the test object
- Hardness tester not included
- One test bench for two hardness scales: Only one additional TI-HE weight needs to be screwed onto the TI-HEA test bench to make it suitable for Shore D hardness testing, see accessories
- Steel plate, levelable for precise measurements
- Level adjustment: For precise levelling of the steel base plate, e.g. for inhomogeneous test objects
- Mechanical design: Compact design allows for easy handling
- With this test bench, the accuracy of the measurement result is higher than with a manual measurement
- Easy operation enables repeatable measurement results:
Operation:
1. The SAUTER HED hardness testing instrument is positioned suspended
2. The test bench can be swivelled using the 2 screw mechanisms underneath the Shore hardness testing instrument
3. The test object is placed on the round test table directly below the measuring terminal of the hardness testing instrument
4. Pressing the lever releases the calibration weight, which with its own weight compresses the measuring terminal directly into the test object
- Hardness tester not included
Product specifications
| Technical Code | TI-HED |
|---|---|
| Brand Name | KERN |
