Description
Resolution 0,001 mm.

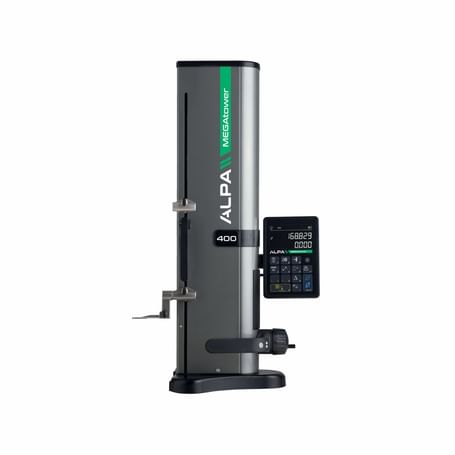

Totally manufactured in Switzerland, it guarantees durability, accuracy and reliability. The display unit provides functions that are directly accessible and defined with symbols easy to understand. This allows easy and quick handling operators. It is equipped with an air cushion for easy displacement on measuring table.
Electronically adjustable measuring force.
Supplied with three RDT calibration certificates (column, zero setting and orthogonality master).
Totally manufactured in Switzerland, it guarantees durability, accuracy and reliability. The display unit provides functions that are directly accessible and defined with symbols easy to understand. This allows easy and quick handling operators. It is equipped with an air cushion for easy displacement on measuring table.
Electronically adjustable measuring force.
Supplied with three RDT calibration certificates (column, zero setting and orthogonality master).
Product specifications
| Technical Code | D4200 |
|---|---|
| Brand Name | ALPA |
| Repeatability | 2 (Ø:4) μm |
| Measuring force | N 0,75 ÷ 1,5 |
| Battery life | 40 H |
| Column protection | IP67 |
| Maximum error | 5 μm |
| Perpendicularity error | 10 μm (GA050400) 15 μm (GA050700) |
