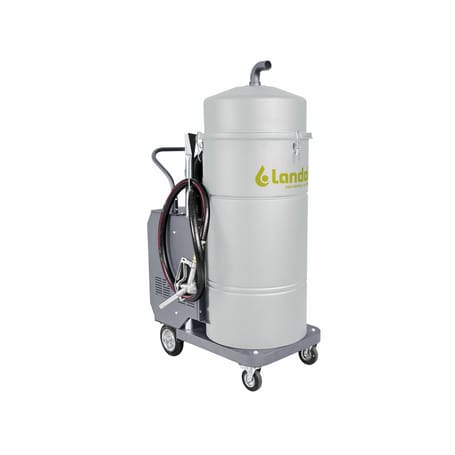

Industrial vacuum cleaner Twist Oil Evo LANDOIL

Skip to the beginning of the images gallery

Description

Industrial vacuum cleaner for suctioning and separating oil and metal swarf from machining centre tanks. Equipped with three single-phase motors, it has a liquid capacity of 200 litres and has a pump for discharging the filtered liquid that allows simultaneous and continuous suction and discharge.
.
Features:.
- Separation unit that traps the chips in a micro-perforated steel basket to simplify disposal and make the filtered liquid suitable for re-use.
- Liquid discharge system by means of an electric pump for fast discharge of sucked and filtered liquids.
- Approximate liquid suction time 200lt / 80 sec and liquid discharge 200lt / 100 sec.
- Anti-oil cartridge for motor protection .
- Vacuum gauge for signalling when filter is clogged or needs replacing

Product specifications

Technical Code	H4102
Brand Name	LANDOIL
	Galvanised scraper d.50
01	The oil and wood shavings are extracted through the suction inlet
02	The shavings are separated from the oil in the metal basket
03	The oil is collected in the tank
04	The external pump expels the oil.
05	The oil leaving the tank can be collected and reused
06	The air passes through an oil filter which protects the engine head
07	The filtered air is fed to the intake unit, where and is then expelled, clean, into the room
08	Float with level sensor to cut off automatically suction when when the is reached
09	Manual drain tap
Features	Immediate and simple operation
