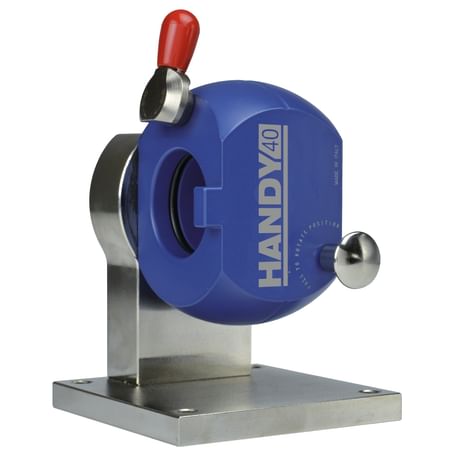

Our cone disassemblers supports are manufactured with the upmost care to preserve the optimal conditions of your toolholders.
.
The characteristics of the supports avoids possible contact between the cone and support thanks to the shape and the presence of an O-ring.
.
Keep clean all surfaces to always ensure maximum performance.
.
The good condition of the cone will always ensure exact setting and precise machining.
.
.
.
.
.
.
Rotation - positioning.
.
1. Pull the indexing knob to unlock.
2. Turn into a new position at 0° 90°.
3. Release the knob to block.
.
.
Toolholders blocking.
.
1. Insert holder making sure the clone is perfectly clean.
2. Check the correct positioning into centering dowel.
3. Rotate locking knob toward SK or BT according to cone version.
.
Toolholders extraction.
.
1. Rotate locking knob to central positioning.
2. Extract holder
