Description

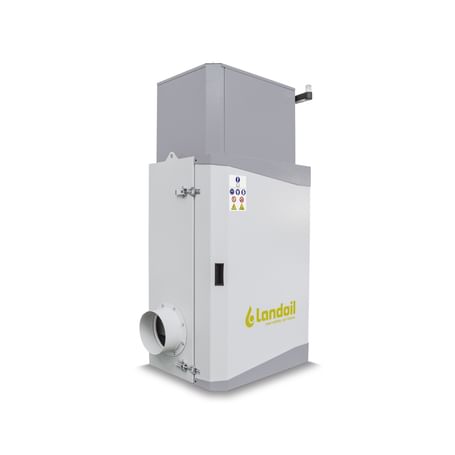

Air filter capable of removing oil mists, fumes and vapours generated by machining operations. The innovative structural design with the electric fan placed downstream from the filtering battery places the entire system under vacuum, guaranteeing perfect filtration and an extraordinary seal against oil leakage. Clogged filter detection device and quick and easy replacement of all filters. The H14 absolute post filter guarantees a final filtration degree of 99.99%. Power supply voltage 400V/50 Hz three-phase.

Product specifications

Technical Code	H5470
Brand Name	LANDOIL
	Filter H14
01	Oil mists, fumes and vapours are suctioned via an inertial impact oil separator which separates them from large size residues

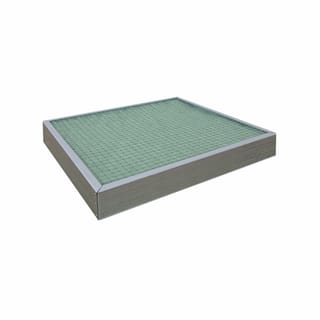

02	The fumes pass through the synthetic pre-filter

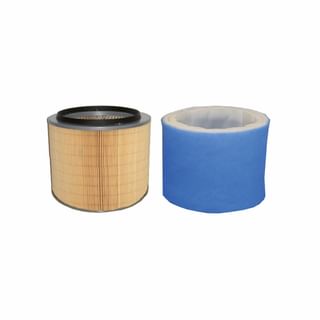

03	As they rise, they pass through a cartridge coated with a special fabric specially created to block the oily particles generated by the machine tool

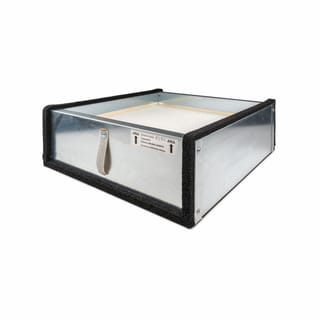

04	The fumes are further filtered by the presence of one or two high efficiency absolute filters
05	The fumes, now 99.99% filtered, continue to rise to the engine housing before being released back into the environment
Features	Low maintenance costs
