Heavy industry standard suitable for tough industrial applications.
- Uniform and cost-effective KERN operating philosophy, consistent across products with regard to design, menu structure, key functions, connection and interface protocol.
- Industry 4.0: Exchange of data and control commands via up to four interfaces as required: two wired interfaces (RS-232, Ethernet, USB or analogue module) and two radio interfaces (WiFi, Bluetooth).
- Each interface can be set separately, e.g:.
- Interface 1 (WiFi): continuous sending to PC for process documentation.
- Interface 2 (RS-232): printing of stable weight value.
- Interface 3 (analogue module): control of a device when target weight is reached.
- Interface 4 (Bluetooth): Continuous sending to tablet for monitoring a process.
- Optionally with alibi memory for paperless storage of weighing results. This also enables electronic evaluation of weighing results subject to calibration for trade and processing in accordance with regulations.
- Remote scale interrogation and control via computer or CRM/ERP systems thanks to the KERN communication protocol.

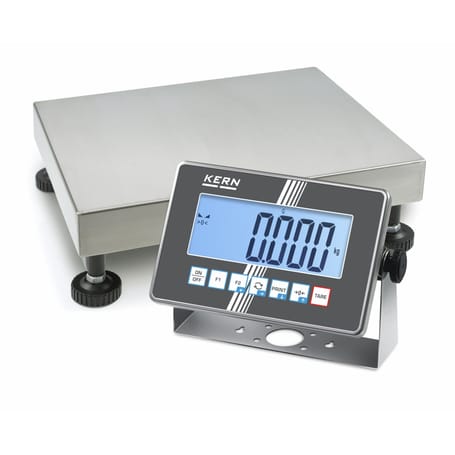

- Platform: stainless steel weighing pan, painted steel substructure, silicone-coated aluminium load cell with IP65 dust and splash protection.
- Display unit: stainless steel, IP68 dust and splash protection. Maximum display width: digit height 48 mm, backlit for easy reading of the weighing value even in unfavourable lighting conditions, integrated mains adapter.
- Only two wired interfaces (RS-232, Ethernet, USB or analogue module) and two wireless interfaces (WiFi, Bluetooth) can be used simultaneously.
- For applications requiring type approval (conformity assessment in accordance with NAWI 2014/31/EU), please order type approval together with the scale; initial type approval at a later date is not possible. For homologation, we require the complete address of the place of use.
- Compatible with KERN EasyTouch software for easy recording and evaluation of weighing data.
-
