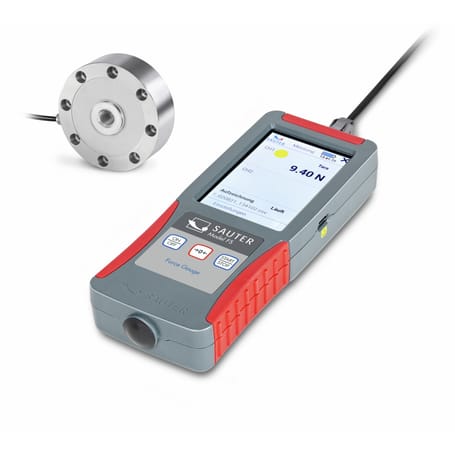

Measuring instrument FS 2.
- Measurement of forces in different directions of tension or compression possible with only one measuring device.
- 3.5" touch screen with touch pen.
- Standard version with 2 measuring channels for external force sensors (later expandable from 2 to 4).
- External sensor-specific data are stored directly in the connector.
- Adjustable SI units: kg, N, kN, mN, Nm, kNm, mNm.
- Track function for continuous measurement display.
- Peak value measurement.
- Tolerance function.
- Internal device memory (16 GB).
- USB interface for data transfer and power supply as standard.
- Two-point adjustment with weights or numerical adjustment possible.
- Supplied in a high-quality, robust system case (systainer® T-LOC) with mains power supply and USB cable type C.
Stainless steel dynamometer CR 5000-1Y1.
- Accuracy class according to OIML C1.
- High accuracy (combined error 0.05% F.S.).
- Nominal sensitivity: 2 mV/V.
- Dust and splash protection IP68 (according to EN 60529), hermetically encapsulated.
- Area of application: for tensile force and pressure measurements
