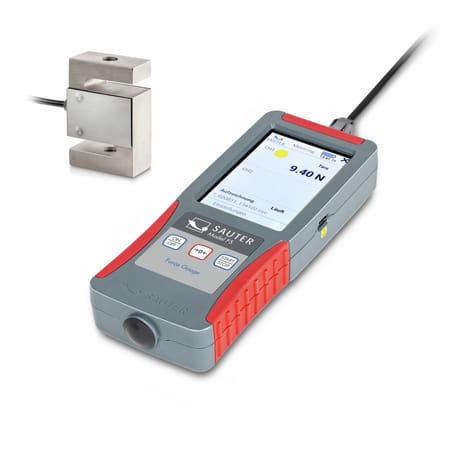

Measuring instrument FS 2
- Measurement of forces in different directions of tension or compression possible with only one measuring device
- 3.5" touch screen with touch pen
- Standard version with 2 measuring channels for external force sensors (later expandable from 2 to 4)
- External sensor-specific data are stored directly in the connector
- Adjustable SI units: kg, N, kN, mN, Nm, kNm, mNm
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality, robust system housing (systainer® T-LOC) with mains power supply and USB cable type C
4-wire nickel-plated steel 'S' measuring cell for force and mass measurement CS 100-3P1
- Accuracy class according to OIML C3
- Nominal sensitivity: 2 mV/V
- Dust and splash protection IP67 (according to EN 60529), hermetically encapsulated
- Area of application: for tensile force and pressure measurements
