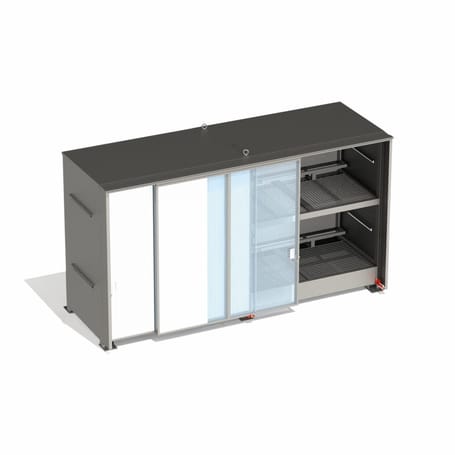

Sheet metal safety containers optimised for the storage of cisterns and drums (PALLET UNITS 1200X1200), equipped with sliding doors with double hook lock and key.
The roof is dimensioned to withstand a snow load of 120[kg/m2]- corresponding to 120 cm snow height- Roof inclination of 3° to favour the elimination of rainwater.
The structure is characterised by a monolithic frame made of structural carbon steel profiles EN10025 assembled and welded together with Mig welding equipment with controlled calibration- structure
verified in accordance with NTC 2018 technical construction standards.
The container is also equipped with a technical compartment on each floor, 300 [mm] deep, to house the systems (air conditioning system, heating system, fire-fighting system, lighting system) or optional extras.
lighting system) or optional extras.
It is also equipped with striker tubes to prevent damage to the rear wall during pallet loading/unloading.
The container can be fixed to the ground by means of structural support plates.
The liquid collection tank is hermetically sealed, made of press-folded carbon steel structurally bound with the use of rolled carbon steel profiles, subjected to non-destructive tests.
carbon steel, subjected to non-destructive testing with application of Rotrivel U and Red WW in accordance with UNI EN ISO 3834-3.
Storage capacity defined according to Interministerial Resolution of 27 July 1984 (definition of the minimum capacity of the collection tank in 1/3 of the storable volume).
INTERNAL BAYS designed to hold 1200x1200 pallets (24 drums on pallet or grating, or 6 IBCs of 1000 [ℓ] ) with ample clearance for pallet handling (at least 50[mm]).
Ventilation grilles applied to the side walls equal to 1/30 of the surface area in plan (Ref. Circular Min. Interiors Circular N° 8 of 17/04/1985) consisting of a lower aluminium ventilation grille with double fixed fins inclined at 45° and an upper aluminium grille with fixed fins inclined at 45°.
HANDLING with a forklift of suitable capacity or, alternatively, with a crane using the special certified eyebolts located on the roof of the container.
